Status Bar Notifications

A status bar notification displays from the status bar and may act as a simple visual indicator, pop-up with warning, or display an error that prevents you from completing an action.

There are two status bar notification types:

Status bar indicators display information for you on the status bar or in a pop-up window.

  • Patient based indicators display according to the selected patient.
  • User based indicators display according to the logged in user.

When a status bar indicator is triggered, it displays on the status bar as text or an icon.

Note: Text indicators may have colored text and/or background.

Tip: You can hover over an indicator to display a tooltip with more information.

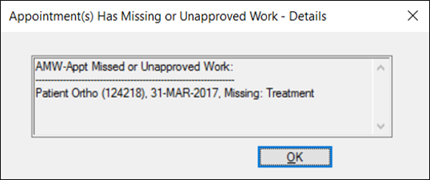

If an arrow icon displays, you can click the icon to display a pop-up window and review additional information.

Note: This display option is helpful if your institution uses many indicators.

Status bar interventions display information for you, include a severity, and may require an action. They may also display a warning or error message to prevent you from performing a certain action.

  • Patient based interventions display according to the selected patient.
  • User based interventions display according to the logged in user.
  • Controllable Event interventions display when a certain event is occurring and triggers an intervention.

Status bar interventions are ranked according to severity:

  • Mild: Likely informative.
  • Moderate: Information is important and/or requires action.
  • Severe: Information is critical and requires immediate action.

There are two types of status bar interventions:

Reactive interventions inform you about an existing situation or condition and display their information at a time appropriate to the activity you are performing. They are triggered by an action you take, including:

  • Selecting a patient.
  • Checking in or checking out a patient.
  • Opening the Ortho, EHR, or Perio modules, or a non-eRx prescription.

Proactive interventions warn or prevent you from performing an action. An intervention can display before a treatment/appointment is added and warn you about proceeding or display an error that prevents you from completing the action. Interventions can be set up to run when you try to perform the following activities:

  • Adding a planned, in-progress, or completed treatment.
  • Adding an active appointment.
  • Requesting approval for items using approval requests.

When a status bar intervention is triggered, it displays on the status bar as an icon and as a pop-up message.

Note: If several interventions are triggered at the same time, the highest severity color displays on the status bar.

The intervention message displays the same severity indicator as the status bar and information about the intervention’s cause.

  • If the window is a warning and you want to continue, you can click Yes.
  • If the window is a warning and you want to cancel the action, you can click No.

    • Note: If the window is an error, you cannot continue.

You can also click the intervention to display the Provider Interventions Display window.

Note: If multiple interventions are triggered, axiUm displays them in order of severity, from severe to mild.

If there are multiple interventions, you can sort and filter them using the fields.

Field Description
Show All Patients

Select the checkbox to show all interventions related to the logged in user instead of the selected patient.
Include Detected Select the checkbox to include interventions that are detected but not displayed.
Show Warnings and Errors

Select the checkbox to include both warning and error interventions generated by interventions based on controllable events.
Sort by Select an option from the drop-down list to sort the intervention list.
